Move CS to End Command for History Tree

Only operations listed in the history tree before the Object CS’s creation will affect the Object CS, and in turn, affect objects dependent upon that Object CS. An Object CS, or objects created on it, is not affected by operations that occur after it is created. It is sometimes useful to have the coordinate system affected after any other operations that might have edited, moved or rotated the object.

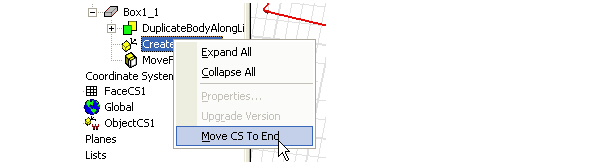

If you have at least one History operation after a Face or Object CS in the History tree, selecting a Face or Object CS enables the Move CS to End command in the Modeler>Coordinate System cascade menu and the History Tree shortcut menu.

Executing the command moves the selected CreateObject CS to the end position in the History tree and updates associated items (other CS, object history, any dependent parts etc.).

Related Topics

Creating a Face Coordinate System

Move CS to End

Creating an Offset Object CS

Creating a Rotated Object CS

Creating an Object CS that is both Rotated and Offset
