CST MWS仿真方向圖每調整一次頻率點都要重新仿真一次，這也太麻煩了吧
如題。用CST仿真方向圖的時候，設置了幾個頻率點。后來想要仿真增益，覺得頻率點太稀疏了，增加了幾個頻率點，又要重新仿真才能得到結果。HFSS只要仿真完畢，想要得到方向圖和增益都只要在results->creat report中設置就行了，不需要重新計算。請問是不是我對CST的設置有問題。我用的是CST2010。有沒有簡單的辦法，用CST計算一次，以后就不用再重復仿真了，請大家指教。多謝。
小編確定HFSS的results-creat report是一個準確的輸出結果的方式?即使沒有在一開始仿真的時候設置監視器?我的感覺是這個結果是否是通過已有場數據經過數值擬合計算得來的呢?
CST確實是這樣，就是如果增加了頻點，必須得重新計算。這個跟算法有關，跟計算時儲存的結果有關。
但是話說回來，我覺得CST應該有那種插值擬合場結果的算法，只是未必準確。
用時域不行嗎?你可以用時域設置個寬帶的遠場監視器試試，插值的精度可以定義的，1e-5夠了吧?
的確沒有聽說CST有插值計算場的方法
話說回來：
1.CST是時域算法，增加監視器數量對其仿真時間并不影響或者影響非常小（影響的主要是存貯空間），因而你如果需要比較多的頻點預先多設幾個Monitor即可。你仿真前不會連自己需要哪些頻點的Monitor都不知道吧
2.內插法畢竟存在誤差，考慮到前面那一條，對CST來說好像真的沒那么必要
有寬帶的遠場監視器啊。
OK。學習了，謝謝f1381584904童鞋

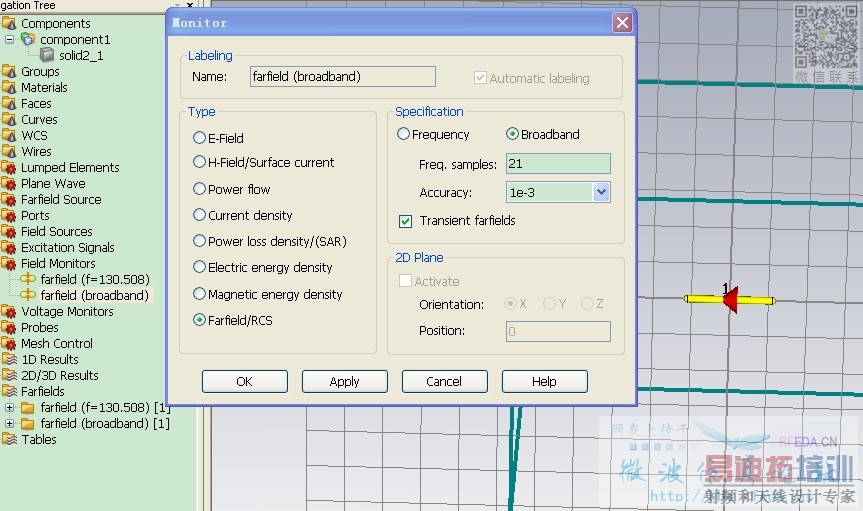

根據Help文件 Solve——>Monitors，Broadband Farfield Monitor即為小編所需的。其采用球面波展開的方法計算遠場，Accuracy決定了其球面波展開式的階數，而Freq。Sample決定了瞬態求解遠場采樣點的數量，其余頻點遠場將通過內插得到

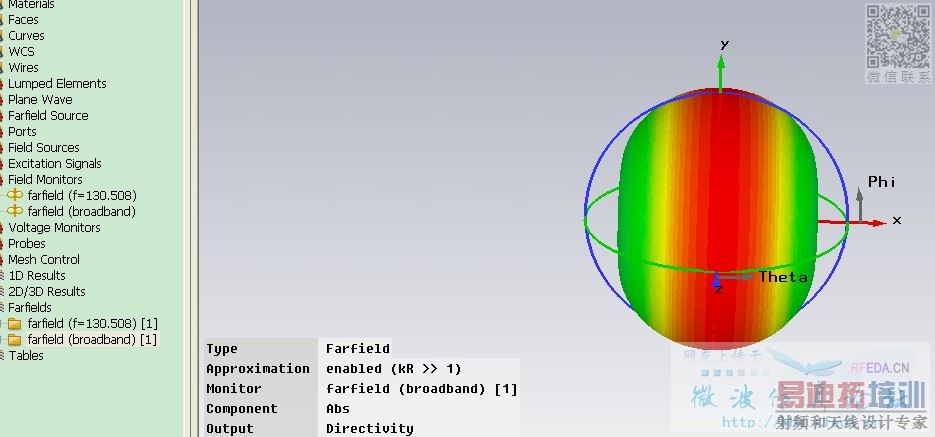

Broadband: If a farfield monitor was selected in the type frame a broadband farfield can be calculated during the transient solver run. The broadband farfield monitor is based on an expansion of the farfield in terms of spherical waves. The origin of the expansion is the center of the bounding box. It allows to obtain the farfield at any frequency in the specified range as well as at any time of the simulation. Frequency domain and time domain results can be accessed by selecting plots of a broadband farfield monitor and by the plot properties dialog.
Freq. samples: Choose a number of equidistant frequency samples between Fmin and Fmax where frequency domain farfields are calculated. Results for any frequencies in between are interpolated to obtain broadband information. For a more accurate interpolation over the frequency band increase this value e.g. to "31". An odd number assures that the result at mid frequency is not obtained by interpolation.
Accuracy: Defines the desired accuracy of the farfield. Together with the Fmax and the size of the structure it determines the number of modes required to represent the farfield.
Note that leaving out higher order terms by choosing a lower accuracy is equivalent to low pass filtering the farfield solution. This saves memory and computation time. However, the farfield result has usually less detail.
Transient farfields: This check button activates the additional calculation of transient farfield information which can be displayed afterwards for a certain time in the post processing. Note that in order to accurately obtain time domain farfields the computational effort is higher than for broadband farfields only.
剛開始為了節省時間，設置的頻點少。后來想增加頻點，只能重新仿真了。謝謝各位。
