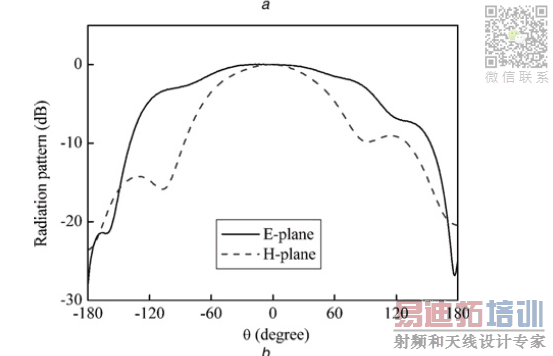

i need to plot E-plane and H-plane pattern such az attached picture in cst .dimansion should be "dbi". how i can plot e plane and h plane pattern in cst?
I think, in CST, and similar in HFSS, you get to see the radiation patterns using a field monitor.
You can select the types of field you want to monitor
You can then make the resulting plot options display it as Cartesian or Polar instead of 3D
