Hi guy,
i'm currently doing pcb simulation with CST. i have some basic question to ask here.

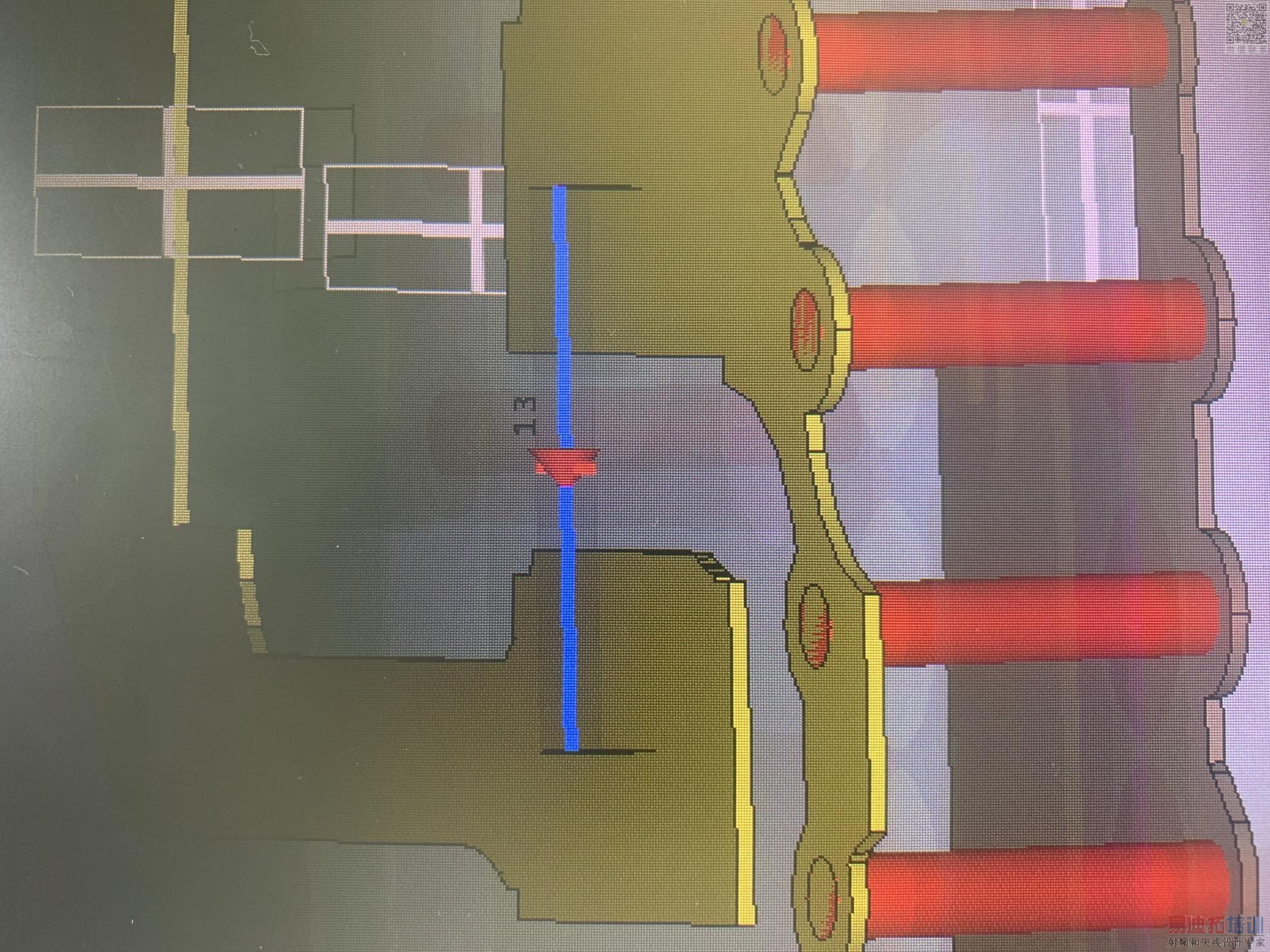

let say i assign a discrete port in my PCB for a series component as shown in figure below

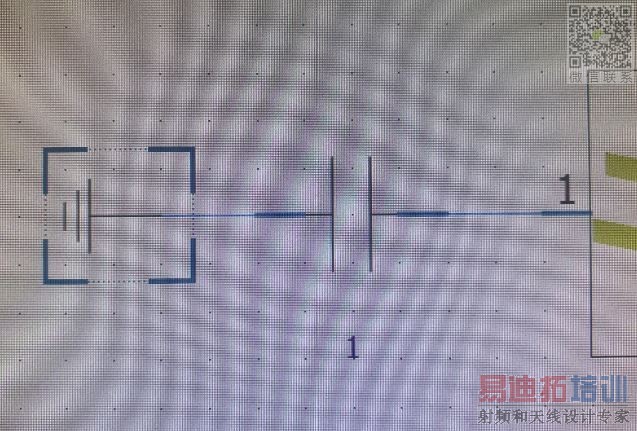

In schematic tab i assign this discrete port as lump component. the connection is shown in below. am i doing it right, by terminating the other end with a ground.
one more question if i replace it with a series resistor, i wanna probe the signal after the series resistor, which side i should place the probe in schematic tab, the ground site or the other side?
hope someone here can answer my question.
thanks
Yes, that creates a connection from the ports plus terminal to the ports local reference.
If your port represents a series element, then both is wrong. You need to probe voltage against the "global" ground where the input ports refer to. Which means you need another port that has ground reference connected to that global ground.
sorry u mean if it reprensent a series element then i cant place ground on the other side on the schematic tab?
