   Assign Master and Slave Boundaries

Assign Floquet Ports

This section describes how to assign Floquet Ports on the unit cell after you define the Master and Slave boundaries. To assign the Floquet port perform the following steps.

1. Select the top face of the unit cell, right click, and select Assign>Excitation>Floquet Port from the shortcut menu.

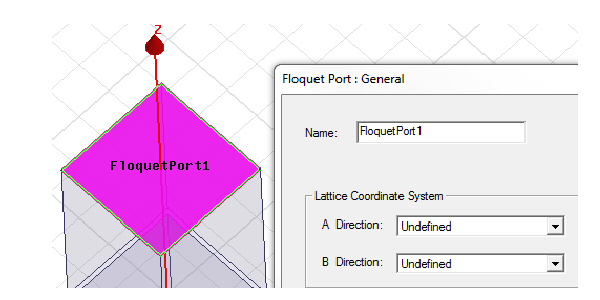

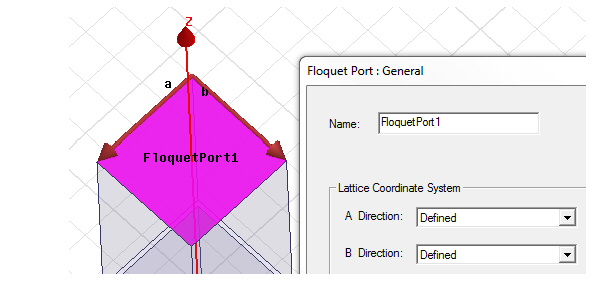

2. Specify the A and B directions for the Lattice coordinate system. These define the periodicity of the planar lattice. The vector arrows must start and end at points on the face of the Floquet port and must have a common initial point.

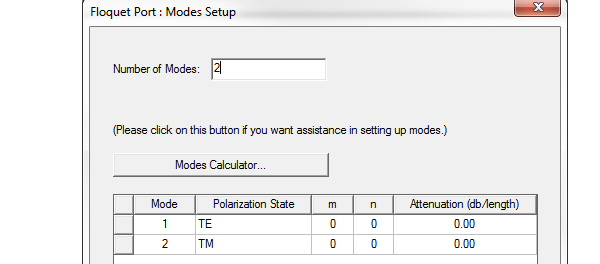

3. The Modes Setup window displays a field for the Number of Modes, a button for access to the Modes Calculator, and a table.

4. On the post processing panel, if needed, the deembed distance can be specified.
