[CST MWS] Selection of correct template for Si Wafer at THz freq ?

來源：edatop 更新時間：2024-08-13 閱讀：

Dear Members,
I am desiging a simple rectangular substrate filled waveguide in CST MWS using Si Wafer. The dimensions of the wafer are in um and the center frequency is 10 THz. I have selected the optical template in CST. I am getting following error when assigning the relevant thickness of wafer materials i.e. SiO2 (1.5 um)+Si(380 um)+SiO2(1.5 um).
Can someone kindly assist.
Error:

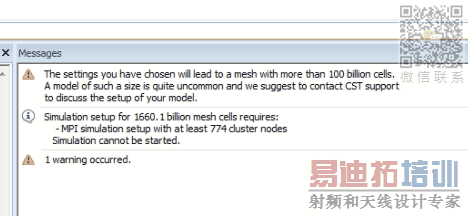

The settings you have chosen will lead to a mesh with more than 100 billion cells. A model of such a size is quite uncommon and we suggest to contact CST support to discuss the setup of your model.
Brick creation leads to the following bounding box problem: Dimensions are too large for the 3D Modeler.
Awaiting your positive replies,
Regards

The problem is what the message says: the dimensions are large compared to the wavelength, resulting in an extreme mesh. Check if you really need these large model dimensions.

Well I need these exact dimensions as I want to simulate the Silicon Wafer available at hand.

Ok, but then you can't simulate because the model is too large.

OK.Thnx
...

use the CST MWS instead of optical one,
in optical because the frequency is extremely high the wavelength is low and number of mesh will be a really a lot

@kamiar.t THnx for the suggestion. I will try that.

@kamiar: Well this technique doesn;t work as well

reduce your dimensions significantly and try again, if there is still you have done with wrong unites or wrong templates, check your unite setting and try another template with larger bounding box and different boundary conditions...

Dear @kamiar.t

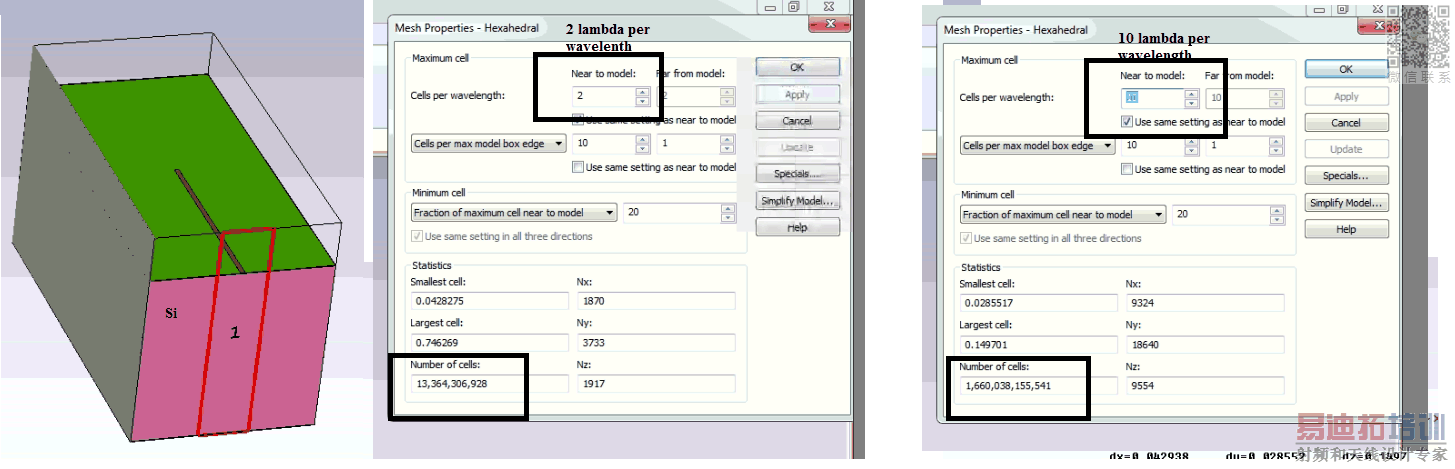

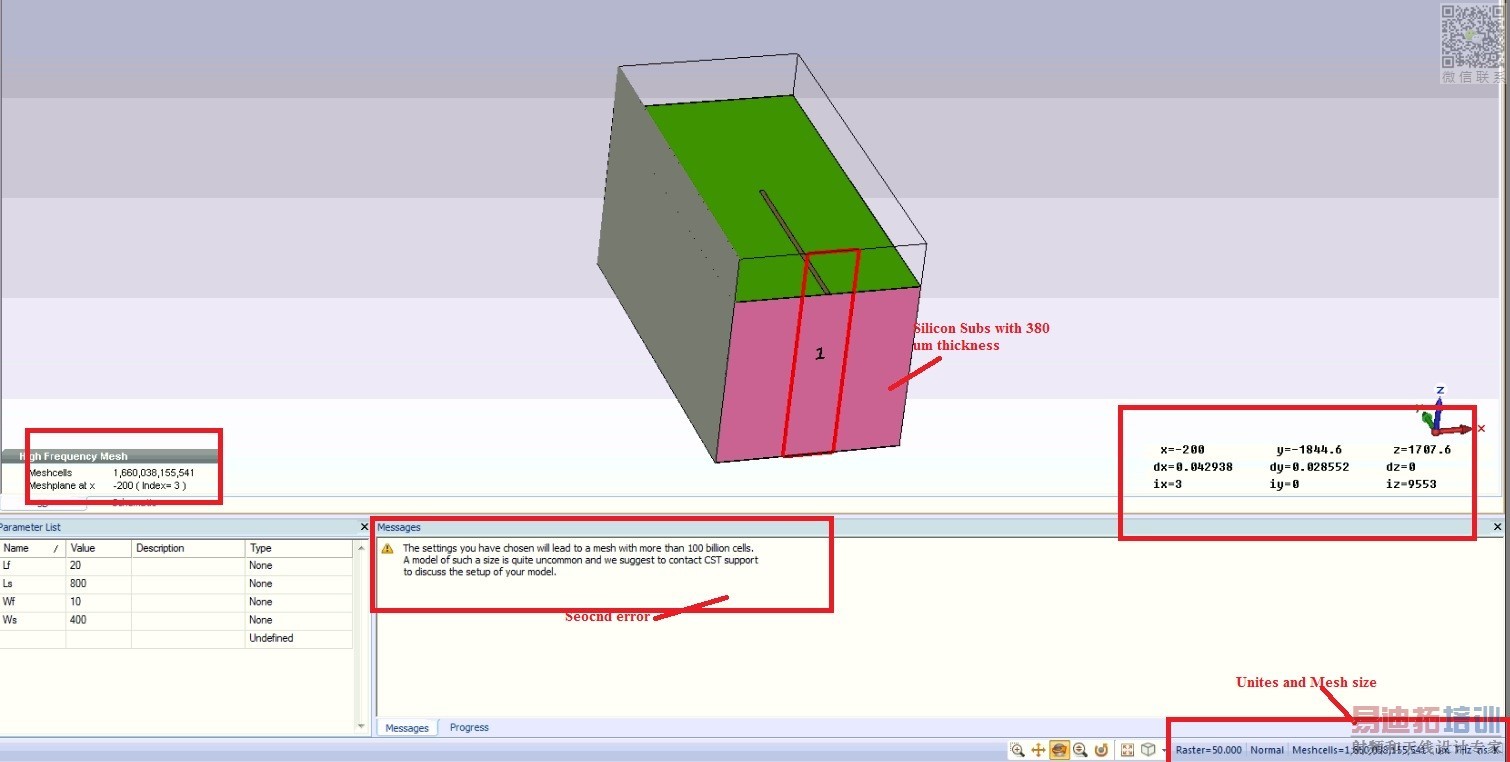

Following images show the units along with the mesh size...I have tried with mesh of 10/lambda and 2/lambda.but still no solution.
Kindly advise something on simulating this Si structure with 380 um thickness working at 100 THz.
