 HFSS online help > ANSYS Workbench Integration Overview

ANSYS EM to ANSYS Geometry Transfer

ANSYS Electromagnetics CAD Integration transfers model information based on Workbench links.

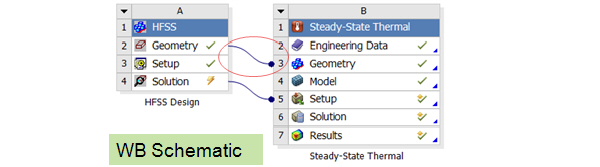

The following figure shows how the information is transferred between simulators.

The information transferred includes:

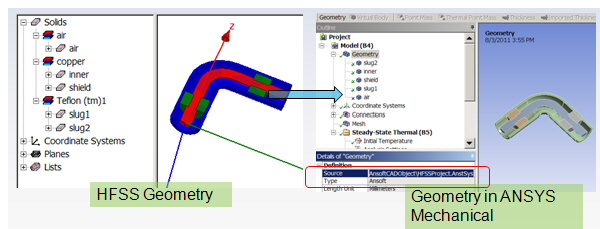

• Geometry

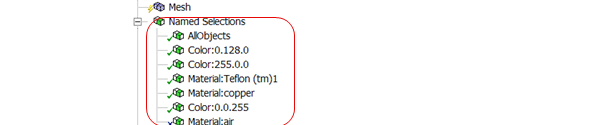

• ANSYS Electromagnetics lists and material assignment as Named Selection

• Material assignment

The CAD Integration geometry link is

• Dynamic because you can get updated geometry from ANSYS EM

• Associative because IDs persist between ANSYS Electromagnetics model and ANSYS model during model refresh.

Boundary conditions in ANSYS are preserved.

Related Topics

User Defined Model (UDM) for ANSYS WB Integration

Material Assignment Transfer

Geometry Transfer through ANSYS DesignModeler (DM)
